Ultra thin wall polyolefin Heat shrinkable tubes

FOB Reference Price:Get Latest Price
$0.03 - $0.10 / Meter | 200 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 10000 >10000
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
KEHONG
Model Number:
A-2(TW)
Type:
Insulation Sleeving
Material:
PE, corss lined polyolefin
Application:
Low Voltage
Rated Voltage:
600V
Tensile Strength:
10 MPa Min.
Shrink ratio:
2:1
Single wall:
without adhesive
Approval:
UL
Min shrink temperature:
70℃
work temperature:
-45℃ to 125℃
Flammability:
VW-1, UL 224
color:
black, red, green, all colors are available
Delivery time:
5 days after order confirmation
Supply Ability
Supply Ability:
1200000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
Ultra thin wall Heat shrinkable tubes
Spool packing, then packing spool into cartons.
Port
Guangzhou, Huangpu, Shenzhen
Lead Time :
Quantity(Meters) 1 - 10000 >10000
Est. Time(days) 5 To be negotiated

Ultra thin wall Heat shrinkable tubes



Model: A-2(TW)



Environment friendly, ultra thin-wall, flexible, flame-retardant, polyolefin tubing



1) Application

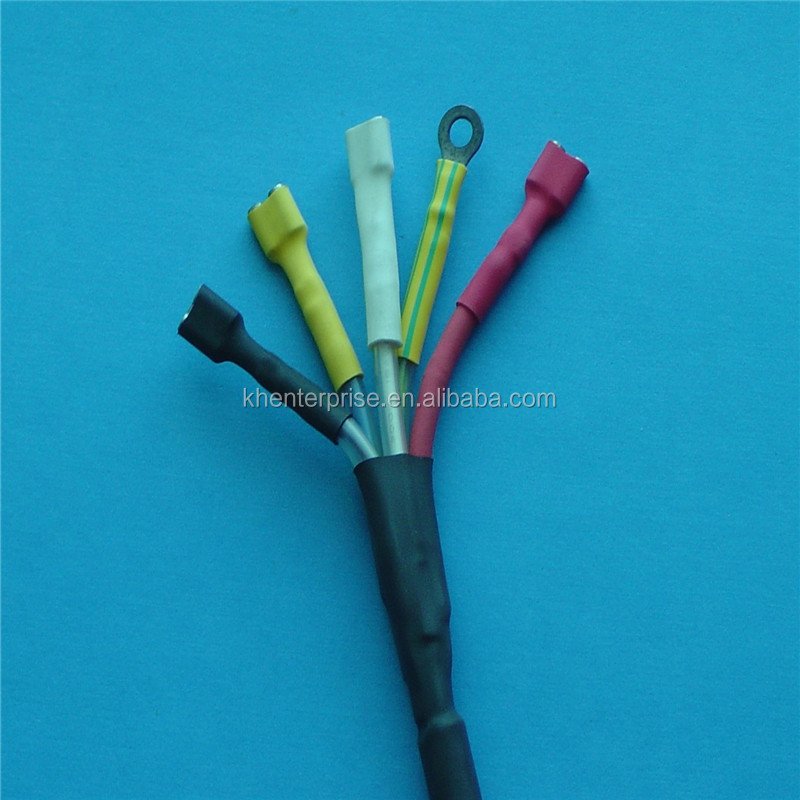

A-2(TW) is ultra thin-wall, irradiated cross-linking, flexible, flame-retardant, heat-shrinkable modified polyolefin tubing. It is designed for applications that require an ultra thin wall for rapid shrinking and space saving. Low shrink temperature further reduces installation time and the risk of damage to temperature-sensitive components.



2) Features/Benefits



Shrink ratio: 2:1

Low shrink temperature.

Ultra thin-wall, rapid shrinking.

Very flexible, flame-retardant.

Conform to European RoHS environmental directive.

Wide range of sizes and colors.



3) Operating Temperature Range



Operating temperature range: -55℃~125℃

Minimum shrink temperature: 60℃

Minimum full recovery temperature: 100℃



4) Standards/Approvals

UL224, 125 VW-1

UL Approval



5) Specification values



Property

Requirement

Test method

Typical data

Physical:

Concentricity

70% min.

ASTM D 2671

70%



Tensile strength

10.4MPa min.

ASTM D 638

14.0MPa



Elongation

200% min.

ASTM D 638

400%



Heat shock

250, 4hrs

No cracking, dripping or flowing

ASTM D 2671

Pass



Low temperature flexibility

-55, 4hrs

No cracking

ASTM D 2671

Pass

Aging   158,168hrs







Tensile strength after aging

70% of original min.

ASTM D 638

90%

Elongation after aging

100% min.

ASTM D 638

300%

Electrical:

Dielectric voltage withstand

2500V, 60sec

 no breakdown

UL224

Pass

  Dielectric strength

19.7KV/mm min.

ASTM D 2671

25KV/mm

  Volume resistivity

1014Ω·cm min.

ASTM D 876

≥1014Ω·cm

Chemical:

Corrosion

No corrosion

ASTM D 2671

Pass



  Flammability

VW-1

UL224

Pass



6) Product sizes

  Inch size

Size

(inch)

As supplied(mm)

After recovery(mm)

Standard length

(m/spool)

Inside diameter

Wall thickness

(nominal)

Inside diameter

(max.)

Wall thickness

(min.)

3/64

1.4±0.2

0.10

0.6

0.20

200

1/16

1.9±0.2

0.10

0.8

0.20

200

3/32

2.8±0.3

0.15

1.2

0.25

200

1/8

3.5±0.3

0.15

1.6

0.25

200

3/16

5.5±0.3

0.15

2.4

0.25

100

1/4

6.5±0.3

0.15

3.2

0.28

100

3/8

10.6±0.4

0.15

4.8

0.28

200

1/2

13.6±0.4

0.20

6.4

0.28

200

3/4

21.0±1.0

0.25

9.5

0.35

100

1

26.0±1.0

0.25

12.7

0.40

100



Metric size

Size

(mm)

As supplied(mm)

After recovery(mm)

Standard length

(m/spool)

Inside diameter

Wall thickness

Inside diameter

(max.)

Wall thickness

(min.)

φ1.0

1.4±0.2

0.10±0.03

0.65

0.20

200

φ1.5

1.9±0.2

0.10±0.03

0.75

0.20

200

φ2.0

2.4±0.2

0.12±0.03

1.00

0.20

200

φ2.5

2.8±0.3

0.13±0.05

1.25

0.25

200

φ3.0

3.4±0.3

0.13±0.05

1.50

0.25

200

φ3.5

3.9±0.3

0.13±0.05

1.75

0.25

200

φ4.0

4.4±0.3

0.15±0.05

2.00

0.25

200

φ5.0

5.5±0.3

0.15±0.05

2.50

0.25

100

φ6.0

6.5±0.3

0.15±0.05

3.00

0.28

100

φ7.0

7.5±0.3

0.15±0.05

3.50

0.28

200

φ8.0

8.6±0.4

0.15±0.05

4.00

0.28

200

φ9.0

9.6±0.4

0.15±0.05

4.50

0.28

200

φ10.0

10.6±0.4

0.15±0.05

5.00

0.28

200

φ11.0

11.6±0.4

0.18±0.05

5.50

0.28

200

φ12.0

12.6±0.4

0.20±0.05

6.00

0.28

200

φ13.0

13.6±0.4

0.20±0.05

6.50

0.30

200

φ14.0

14.6±0.4

0.20±0.05

7.00

0.30

200

φ15.0

15.6±0.5

0.20±0.05

7.50

0.32

200

φ16.0

16.6±0.5

0.20±0.05

8.00

0.36

200

φ18.0

18.6±0.5

0.22±0.05

9.00

0.36

200

φ20.0

21.0±1.0

0.25±0.05

10.0

0.36

100

φ22.0

23.0±1.0

0.25±0.05

11.0

0.40

100

φ25.0

26.0±1.0

0.25±0.05

12.5

0.40

100

 Click here for Free Samples!!




Ultra thin wall polyolefin Heat shrinkable tubes

Ultra thin wall polyolefin Heat shrinkable tubes

Click here for Free Samples!!





Company Information

KeHong Enterprises Co Ltd is specializes in heat shrinkable technology and manufacture, Headquarter in Hong kong, with factory in GuangZhou and Shenzhen City.

 Our factories have obtained the certification of ISO 9001, and main insulation material tubes have UL certification of ISO 9001, and main insulation material tubes have UL cetification, SGS approval, and meet ROHS standard.

 KEHONG is one of electrical insulation suppliers, which is able to provide consistent professional, experienced and efficient product service. If you are unable to find a proper tubing or sleeve from our existing products to meet your equirement, please do not hesitate to provide us with your further more detail requirements. Our technical team will do the best to satisfy your requirements with our products.

414905455

Packaging & Shipping
  1. For one to two cartons of goods, freight by the agent of DHL,UPS,TNT,Fedex.
  2. For LCL goods will be freight by sea or air.
  3. Usually we can find the most competitive freight cost for our clients.

Spool packing
