Stress control heat shrink tube for 11-24kv joints and terminations

FOB Reference Price:Get Latest Price
  • 100 - 999 Meters
    $24.00
  • >=1000 Meters
    $1.40
Lead Time:
Quantity(Meters) 1 - 1000 >1000
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guizhou, China
Brand Name:
Kehong
Model Number:
SCHST
Type:
Insulation Sleeving
Material:
PE
Application:
High Voltage
Rated Voltage:
11-24kv
Tensile Strength:
10MPa
Shrink Ratio:
3:1
Sealing by:
hot melt adhesive
Operating temperature:
-45 to 135℃
Standard:
UL224, AMS-DTL-23053/4 Class 3
Color:
Red
Approval:
UL, ROHS
Flammability:
Flame retardant
Supply Ability
Supply Ability:
1000 Meter/Meters per Week
Packaging & Delivery
Packaging Details
Box packing
Port
Guangzhou
Lead Time :
Quantity(Meters) 1 - 1000 >1000
Est. Time(days) 5 To be negotiated

Stress control heat shrink tube for 11-24kv joints and terminations

Medium Voltage Tubing



Model:SCHST



Features:

SCHST is made from radiation cross linked polyolefin material. The specially designed chemical

formulation and carefully controlled manufacture technology effectively release the high electrical stress

present at insulation screen in termination and joint of power cables from 11kv go 24kv.

Electric stress relief, UV resistant, 3:1 shrinking



Minimum shrink temperature:100

Minimum fully recovery temperature:130

heat shrink tube with glue





Technical Data

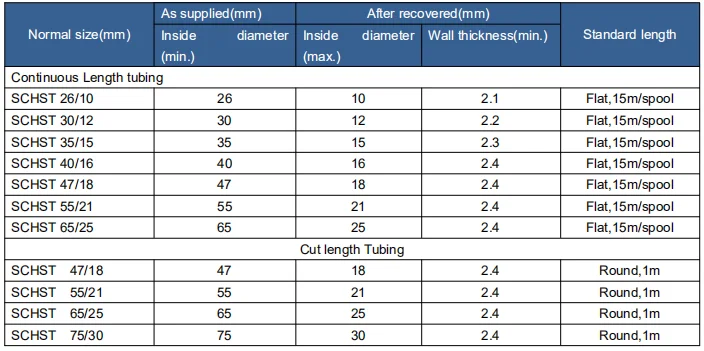

 Selection Table



36KV stress control tube are available up on requirement.





Company Information


 in production



FAQ

Best way to heat shrink tubing

According to different kind to tubes, usually heat the tube by hair dryer, heat gun, heat oven,etc.

Can i use a lighter for heat shrink tubing

For small ID and thin wall heat shrink tubes, we can use lighter to shrink them.

Can you cut heat shrink tubing

Yes,our machine can cut tubes into your required length,such as 10mm/pcs, 30mm/pcs, or 50mm/pcs,etc.

Can you use a hair dryer for heat shrink tubing

Thin wall tubes can be shrinked by hair dryer, such as our tube model A-2(NH), it can begin shrink at 70℃, but for medium and heavy wall tubes shrinking, it's better to use a heat gun.

Can I print my logo on the products?

 Yes, please send us your logo design.
