Thermal transfer printable plastic tags slotted for cable tie fastening
Low Fire Hazard Marker Tags
1) Material: Radiation Cross –linked polyolefin
2) Features and Benefits:
Permanent identification sleeves
Good fluid resistant
Low smoke and Rosh criterion
Lightweight for aerospace applications
Quick Recovery for heat sensitive areas
For space flight, and Railway
The cable Marker Tag are made from zero halogen, low smoke, low toxicity, radiation cross-linked, UV stabilized polyolefin sheet, formed into punched organized cable markers on a paper carrier, They are used for identification of cables and wire bundles by computer-based printing onto markers, Markers are attached using cable ties, this marker tag are ideal for applications where limited fire hazard characteristics are necessary, can be used in wide variety, The marker tags are good fluid, fuel, lube resistant performance and permanent immediately after printing and remain legible even when exposed to abrasion, aggressive cleaning solvents, and military fuels and oils
5) Operating temperature range:-40 to 125℃
UL Recognized, Military SAE AS 81531 4.6.2. MIL-STD-202 method 215J
Meet the performance requirements of SAE-ASM-DTL-23053/5 Class 1
Industry ASTM D2671
BS 6853. DIN 5510-2
7) Printer Information:
Thermal transfer printer, such as Panduit, CAB A+
Polyolefin Identification Markers for Wire and Cable

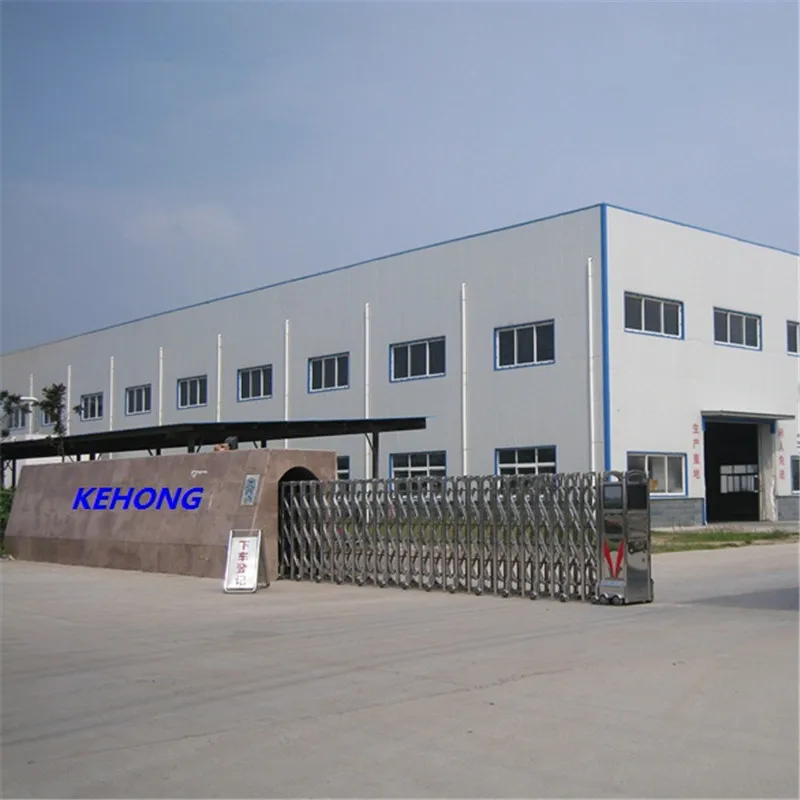

KeHong Enterprises Co Ltdis specializes in heat shrinkable technology and manufacture, Headquarter in Hong kong, with factory in GuangZhou and Shenzhen City.
Our factories have obtained the certification of ISO 9001, and main insulation material tubes have UL certification of ISO 9001, and main insulation material tubes have UL cetification, SGS approval, and meet ROHS standard.
KEHONG is one of electrical insulation suppliers, which is able to provide consistent professional, experienced and efficient product service. If you are unable to find a proper tubing or sleeve from our existing products to meet your equirement, please do not hesitate to provide us with your further more detail requirements. Our technical team will do the best to satisfy your requirements with our products.
Best way to heat shrink tubing
According to different kind to tubes, usually heat the tube by hair dryer, heat gun, heat oven,etc.
Can i use a lighter for heat shrink tubing
For small ID and thin wall heat shrink tubes, we can use lighter to shrink them.
Can you cut heat shrink tubing
Yes,our machine can cut tubes into your required length,such as 10mm/pcs, 30mm/pcs, or 50mm/pcs,etc.
Can you use a hair dryer for heat shrink tubing
Thin wall tubes can be shrinked by hair dryer, such as our tube model A-2(NH), it can begin shrink at 70℃, but for medium and heavy wall tubes shrinking, it's better to use a heat gun.
Can I print my logo on the products?
Yes, please send us your logo design.
Packaging & Shipping
For one to two cartons of goods, freight by the agent of DHL,UPS,TNT,Fedex.
For LCL goods will be freight by sea or air.
Usually we can find the most competitive freight cost for our clients.
