Label printing electrical cable marker plates

FOB Reference Price:Get Latest Price
  • 50 - 199 Pieces
    $0.50
  • >=200 Pieces
    $0.10
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 500 501 - 1000 >1000
Est. Time(days) 5 3 Negotiable
Customization:
Customized logo (Min. Order: 200 Pieces)
Customized packaging (Min. Order: 200 Pieces)

More

Graphic customization (Min. Order: 200 Pieces) Less
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
KeHong
Model Number:
CMT-2
Type:
Insulation Sleeving
Material:
PE, Polyolefins
Rated Voltage:
2500 V,60s,Pass
Application:
Low Voltage
Tensile Strength:
≥6.9MPa
Color:
yellow, white and other colors
Marker hight:
10.4mm~20.4mm
Work Temperature:
-55℃~135℃
Shrink Ratio:
3:1
Fammability:
VW-1, UL224
Marker length:
45mm~90mm
Certification:
ROHS, UL
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
50 to 100 pieces/box
Port
guangzhou
Lead Time :
Quantity(Pieces) 1 - 500 501 - 1000 >1000
Est. Time(days) 5 3 To be negotiated

Label printing electrical cable marker plates

Description:

CMT-2 is made of the environment-friendly polyolefin by means of bombardment and cross-linked of high energy electron bunch, marker tags are non-adhesive that can be used to identify large cables and wires bundles, such as to identify EMU for High-speed, subways, submarine and aerospace, marker tags are attached on large cables and wire bundles with cable ties and keep permanent identification.



There are three options for materials:



Material 1) tag is military grade, operating temperature -55°C----135°C.

Material 2) tag is military grade, fluid resistant, operating temperature -55°C----135°C.

Material 3) tag is halogen free, operating temperature -40°C----125°C.

Marker tags are printed by computer-driven with heavy duty dot matrix, thermal transfer printers and laser graver printers and providing several advantages in terms of reduced errors, cycle time and cost.



Characteristics

1) Side entry marker tags to big size cables and wire bundles retrofit and repair capability, without broken power circuit and run down the machines

2) Easy installation, only standard cable tie-wraps are needed to install

3) Marker tags, no extra steps required

4) Highly flame –retardant, low smog density

5) Highly resistant to abrasion, mechanical abuses, fluids, lubricants and solvents.

6) Low vacuum out gassing for outer space applications,

7) Computer-printable, any characters and logo are easy to design

8) No melting at high temperature, no brittle in freezer.

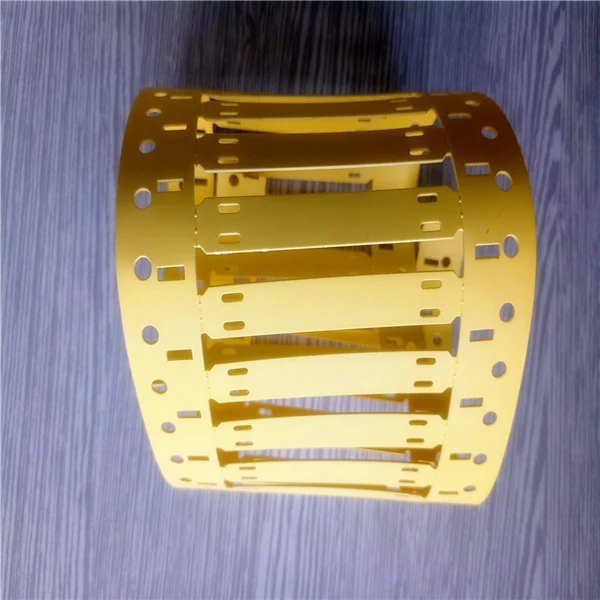

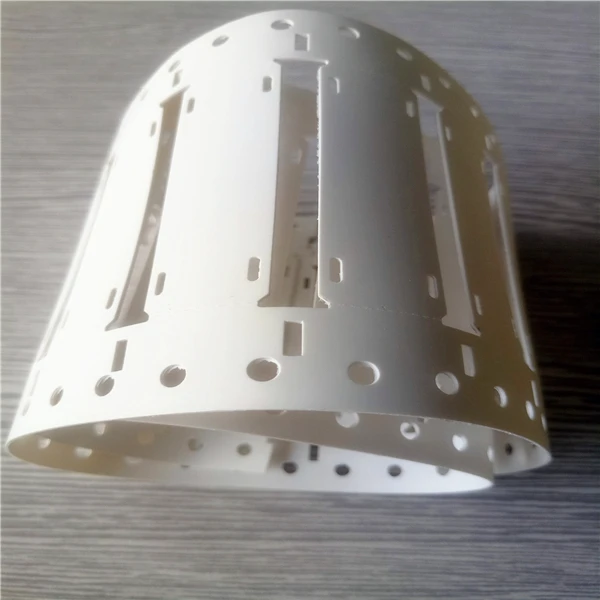

Color: Yellow, White and Other colors

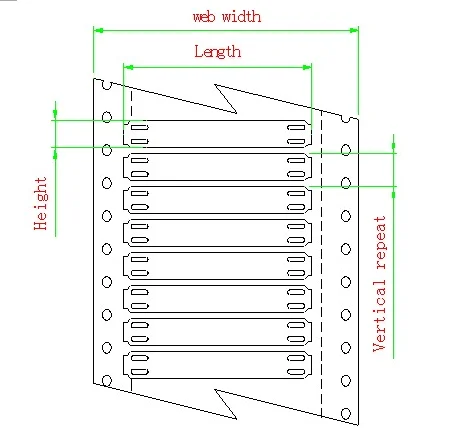

Specification and size





Physic and chemical electronic performance

Property

States

Quota

Test method

Tensile strength (MPa)

unaged

≥10.3MPa

ASTM D2671

Heat-aged

≥6.9MPa

Ultimate elongation(%)

unaged

≥200%

 Heat-aged

≥100%

Voltage withstand(V)

unaged

2500 V,60s,Pass

UL224

Dielectric strength (MV/m)

unaged

≥19.7

ASTM D2671

Heat-aged

≥15.8

Volume resistivity (Ω-cm)



≥10 14

ASTM D2671

Water absorption(%)

Unaged

≤1.0

ASTM D 570

Corrosion

Unaged

Pass

UL 224

Heat shock

Unaged

No flowing or dripping

UL 224

Low temperature flexibility

Unaged

No cracks

UL 224

Flammability

unaged

S3

DIN 5510-2

Printing Ribbon Description

KHN85— is an ultra- high durability black resin thermal transfer ribbon, tested and approved for use on wire marker sleeves as well as cable marker tags.

The max storage temperature: -5°C---40°C

Operating temperature: 5°C----35°C

The delivery temperature: -5°C ----45°C

Complied standards: SAE AS 81531 and MIL-STD-202F/215K

Ribbon width: 100 mm

Ribbon length: 300 m

Printable area: 100% full area

Internal diameter:25mm

Outside diameter: 62mm

Ink: Resin

Standard color: Black

Ribbon wind direction: Ink exterior
