6mm splice sleeves optic fiber protective fusion splice

FOB Reference Price:Get Latest Price
$0.01 - $0.05 / Piece | 1000 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
KeHong
Model Number:
OFHST
Product name:
Optic fiber cable protection sleeve
Application:
Fiber protection
Color:
Clear
Certification:
RoHS
Samples:
Freely supply
Shrink ratio:
2:1
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery

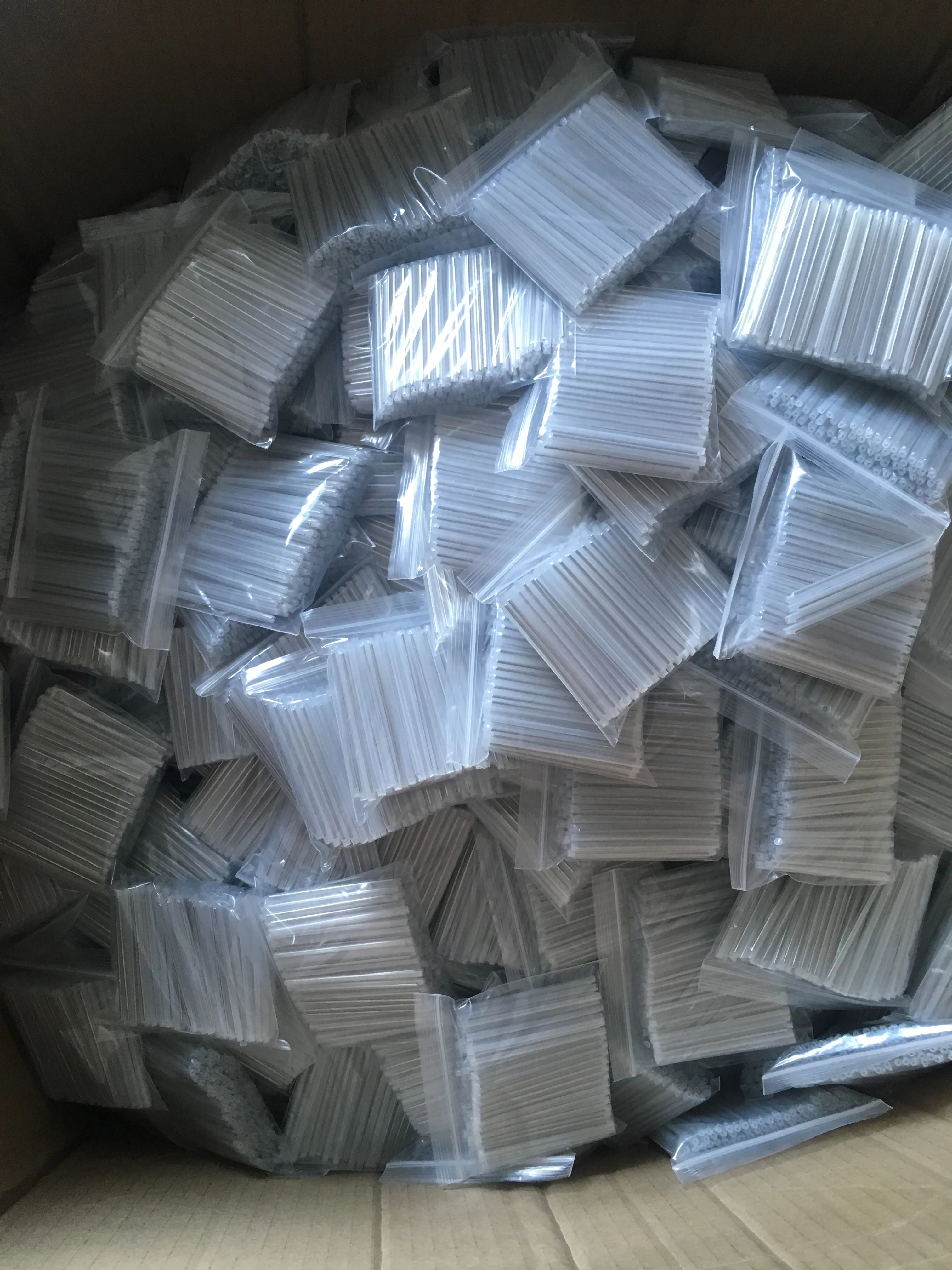

Packaging Details
50pcs in a bag
Port
Guangzhou
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 10 To be negotiated

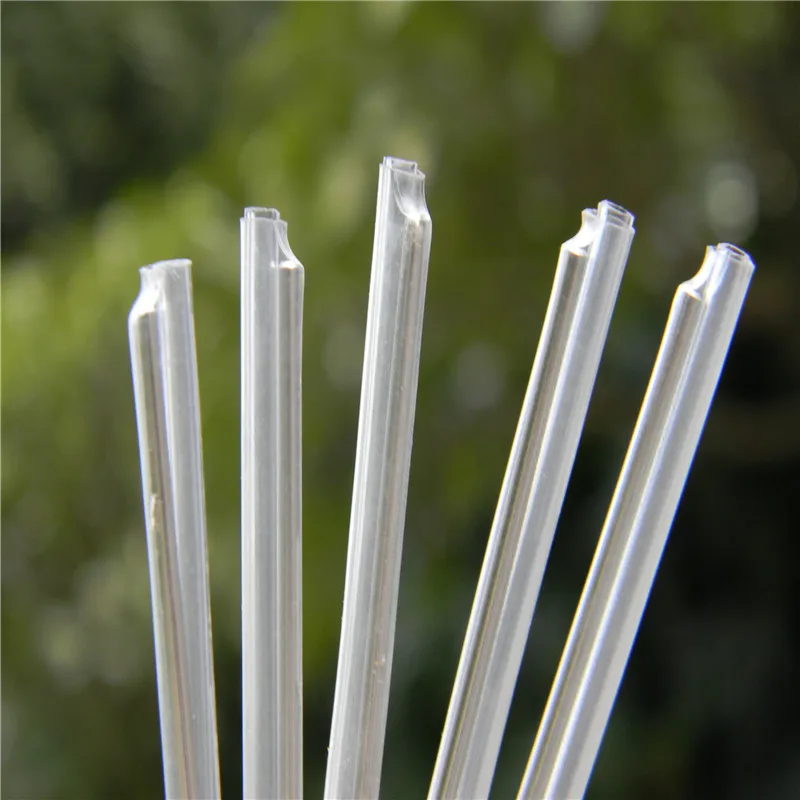

6mm splice sleeves optic fiber protective fusion splice

 Model:OFHST

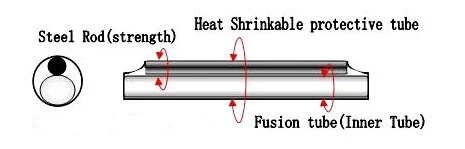

A specially designed crosslinked Clear Heat Shrinkable tubing, with Clear fusion tubing liner, providing SS304 strength member and protection to fiber optical splices.



Features:
Single holed(preshrunk)ends eliminates improper fiber threading
Smooth,deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation
Extended liner length prevents contact between the fiber and their backbone
Clear sleeve design permits easy centering of splice before heating
Sealing structure makes the splice free from effect of temperature and
humidity from environment

Model OFHST
TypeSingle fiber, Ribbon fiber
Material Heat shrink tube, fusion tube, 304 steel rod
Length35, 40, 45, 50, 60mm
Tubing ID1.5, 1.3, 0.5mm
Steel rod diameter1.5, 1.2, 1.0mm
Minimum fully recovery temperature120  °C
Operating temperature-45 °C to + 100  °C
Standard ColorClear



Optic fiber sleeve.png



Technical Data

Properties Test MethodTypical Data
Tensile StrengthASTM D2671≥18 MPa
Ultimate ElongationASTM D2671700%
Dielectric StrengthIEC 24320KV/mm
Dielectric ConstantIEC 2432.5max
Longitudinal ChangeASTM D26710±5%
DensityISO R1183D0.94 g/cm3



Optic Fiber Heat shrink tube(clear)

TypeStainless steel needle(non-magnetic)Heat shrink tubeOD after shrinking(mm)Object Total LengthPacking
Diameter(mm)Length(mm)ID(mm)(mm)(Pcs/bag)

Small

Optic Fiber protection

HST

1550.526050
1450.525050
1400.524550
1350.524050
1300.523550
1551.32.46050

Standard

Optical Fiber protection

HST

1.2551.32.56050
1.2451.32.55050
1.2401.32.54550
1.2351.32.54050
1.2301.32.53550

Large

Optic Fiber protection

HST

1.5551.536050
1.5501.535550
1.5451.535050
1.5401.534550
1.5351.534050
1.5301.533550

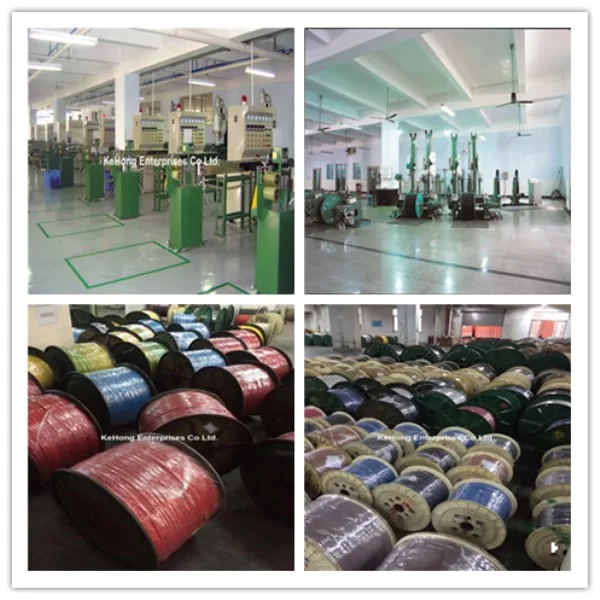

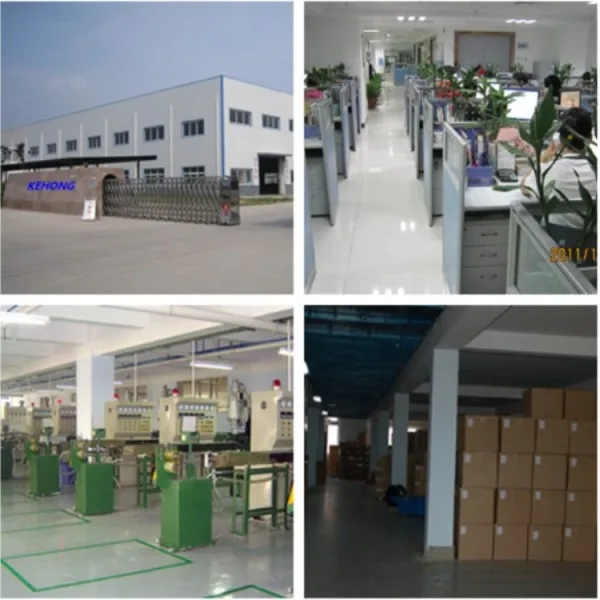

Company Information
